Universal electromagnets
The entire range is designed for applications aimed at keeping doors securely locked, with the purpose of surveillance to prevent break-ins and discourage unauthorized access. Innovative solution to instantly apply to any type of existing frame.

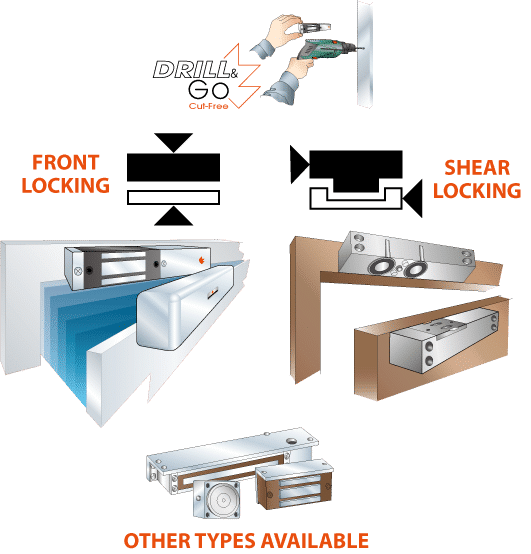

Universal electromagnets: 2 types available
Slim Minisentrylock Series in “CLEAN COVER” casing
Front anchoring with adhesive between the front face of the electromagnet and the floating face of the counterplate. This way, both matching faces ensure a magnetic adhesion without mechanical retention (typical of standard electromagnets).
Slim Sherlock Series in “CLEAN COVER” casing
Mechanical anchoring with recessed teeth using 2 stainless steel pins that fit into their respective matching seats on the counterplate. Upon impact, even at low pressure, the electromagnet (when powered) anchors itself to the floating counterplate and locks it with mechanical force using the floating plate. As a result, the 2 stainless steel pins anchor inside it.
- DRILL&GO CUT-FREE
Surface-mounted installation for quick application without tools or screws, even on already installed doors, with just a drill and screwdriver for fixing. - CLEAN COVER = Protective aluminum monoblock casing for professional electromagnetic locks.
- Automatic emergency unlocking
In case of fire or power failure, the electromagnets unlock automatically, freeing the exit… it’s FAIL-SAFE! - Regoplus adjustable proximity reed sensor for status detection of the door contact, with SPDT 1A output.
- 12 Vdc / 70 mA power supply (extremely low consumption).
